Refrigeration systems
.jpg)
.jpg)

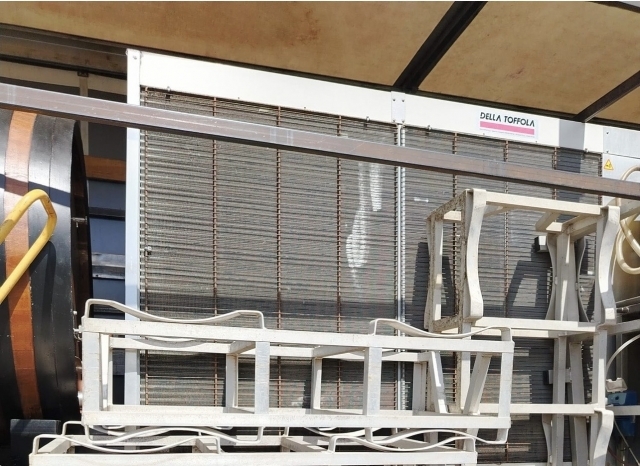

Refrigerator description:
-Frame with stainless steel fairing placed on wheels.
- Hermetic type compressor with low noise and vibrations
- New type exchanger formed by AISI 316 stainless steel pipes in a single development, easy to use and clean
-Air condenser formed by finned copper and aluminum batteries with very silent centrifugal fan
-Inversion group (heat pump) with 4-way electrically controlled valve
-Safety devices with manual and automatic reset pressure switch, operating and warranty thermostats
-Electric panel in compliance with EEC standards, contactors with indicator, pump connection plug, fuses, thermal relays, adjustable thermostat with display.
Technical data:
- Polar model 7
- Frig / hour cooling station: 13.500
- Hermetic compressor from HP. 7
-HP 1.5 fan power
- Refrigerated must from + 25 ° to + 15 ° C liters per hour: 1.350
- Refrigerated wine from + 10 ° to -5 ° C liters / hour: 470
- Heated must from + 10 ° to + 20 ° C with ambient air at + 10 ° C: 1,600
- Heated must from + 10 ° to + 20 ° C with ambient air at + 20 ° C: 2,100
-Electric power required KW: 9
- Type Freed gas Freon 22
